Key Specifications/Features

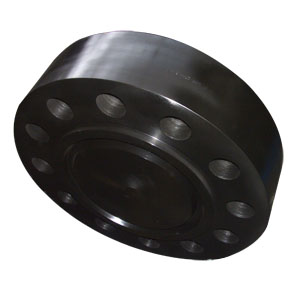

Name: RTJ Blind Flange.
Type: Blind Flange.
Materials: ASTM A105.
Face: RTJ.
Standards: ANSI B16.5.
Pressure: 2500LB (PN420).
Size: 10 Inch (DN250).

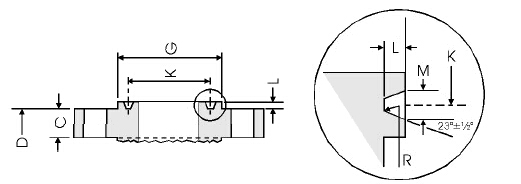

| Nominal Flange Size |
Raised Face |
Groove |
| G |
K |
L |
M |
R |
| Face Diameter min |
Pitch Diameter |
Depth |
Width |
Radius at Bottom |
| Inch |
Inch |
Inch |
Inch |
Inch |
Inch |
| 10 |
16.75 |
13.5 |
0.68 |
1.18 |
0.09 |
| 12 |
16 |
15 |
0.25 |
0.34 |
0.03 |
| 14 |
16.75 |
15.62 |
0.25 |
0.34 |
0.03 |
| 16 |
19 |
17.87 |
0.25 |
0.34 |
0.03 |
| 18 |
21.5 |
20.37 |
0.25 |
0.34 |
0.03 |
| 20 |
23.5 |
22 |
0.25 |
0.34 |
0.03 |
| 24 |
28 |
26.5 |
0.25 |
0.34 |
0.03 |
