Flanges catalog

> Flanges catalog

WNRF flange with A105N raw material

ANSI B16.5 600LBS WNRF SCH160 DN1200 A105N with golden yellow painting and EN1092-1 PN10 DN1200 A105N with plastic protector

900# BL RTJ 60 INCH A105N with anti rust yellow painting

ASTM/ANSI B16.5 STANDARD SPECIFICATION

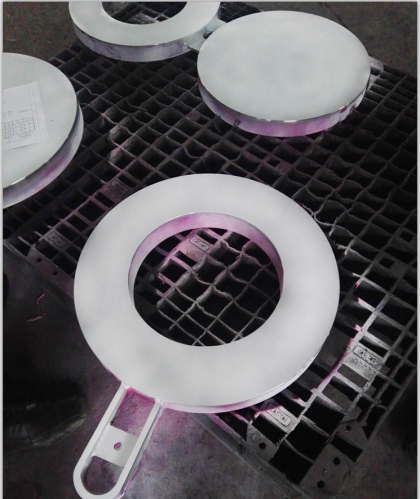

spectacle flange

According to ANSI B16.48 specification. can supply A515.A516.A240 material production.

Tube sheet

can be produced with following material: ASTM A105.A350.A694.A182 standard specification

ANCHOR Flange

Dimensions: ANSI Rating: 150 - 300 - 400 - 600 - 900 - 1500 - 2500 lbs. MATERIALS: ASTM A105 – A350LF2 – A694 – A182 Austenitic grades and ferrite grades

DIN EN1092-1 PN16 TYPE11 WNRF P265GH

DIN EN1092-1 carbon steel flange with auti rust oil

900LBS WNRTJ SCH160 4" A105N(normalized)

surface treatment: 1. RF plastic protector; 2. auti rust blacking painting.

ASME/ASTM B16.5 150LBS WNRF SCH40 10"

Forged-DN250-CL150-WNRF-SCH40-F304-raised face

ANSI 150LBS LWNRF 3" L=406.4MM

B16-5-A105N-CS-150LBS-LWNRF-3" L=406.4MM

ANSI B16.5 150LBS LJ 8" A105

ANSI B16.36 300LBS WNRF 4" with bolts A350LF2CL1

ANSI B16.5 150LBS SWRF STD 4" A105
